500 Series Gravity Conveyor
Light – Medium duty aluminium framed gravity conveyor. Cost effective roller & skate wheel conveyors!
The 500 Series Gravity Conveyor is a medium duty skate wheel or roller conveyor, complete with aluminium side frames. The conveyor length, width and pitch are manufactured to suit the customer’s specific requirements.
Skatewheels are 48mm diameter & rollers options are 30mm, 40mm or 50mm diameter in plastic. We can manufacture with a pitch to suit your requirements, with options ranging from 35mm to 150mm. This series comes with many options & accessories including bends, lift up access gates, side guides, joining plates and connecting hooks (find all series options and accessories listed below).
Gravity conveyors are essential in a wide range of industries where it is necessary to transport items from A to B. The 500 series gravity conveyor helps to do this quickly, safely and with ease.
Ocon Conveyors manufacture a large selection of gravity conveyors in its Speedtrack range, if the 500 Series does not suit your requirement please view alternatives. We have eight different options in our gravity conveyor range suit many applications including light, medium and heavy-duty conveyors, find all our related products below.
Product comes with 1 year warranty
Product Overview
| Side Frame Material | Aluminium |
|---|---|
| Side Frame Finish | Self colour aluminium |
| Side Frame Detail | Channel = 63.5x25x25x3mm |
| Roller Diameter | 30mm, 40mm & 50mm options |
| Roller Material | PVC |
| Skate Wheel Diameter | 48mm |
| Skate Wheel Material | PVC |
| Roller / Skate Wheel Pitch | 35, 40, 45, 50, 60, 75, 100, 125 & 150mm options |
| Roller Rating | 30mm= 12kg, 40mm= 15kg & 50mm= 20kg |
| Skate Wheel Rating | 15kg |
| Standard Widths | 200, 300, 400, 450, 500, 600, 700 & 750mm |

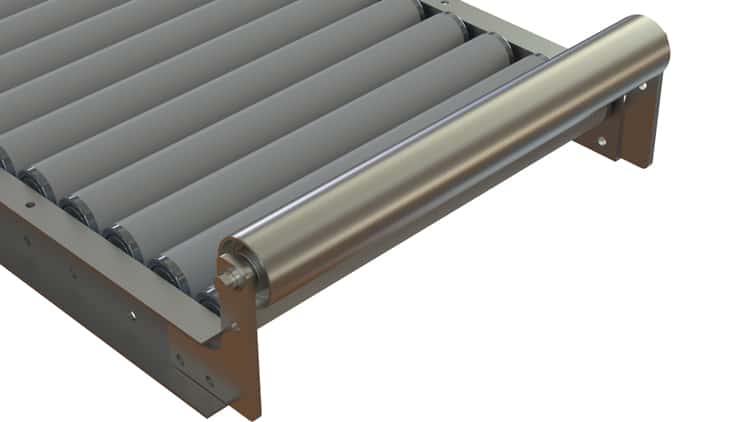

| Series options / accessories | Straight modules 45 & 90 degree bends Spiraled fall bends Lift up access gate Twin roller, triple roller, quadruple roller & multi roller Sideguides Endstop plate & Endstop roller Joining plates Connecting hooks Fixed support stands Mobile support stands Screw foot / adjustable leveling support Stands Twin & Multi-Tier Support stands |
